Quad-X manufacture a range of ATV accessories and quad equipment catering for grass care, weed control, and livestock care needs.

  • Designed to Pulverise Overgrown Vegetation!!
  • High Speed Rotor for Finer Chop!

Overview

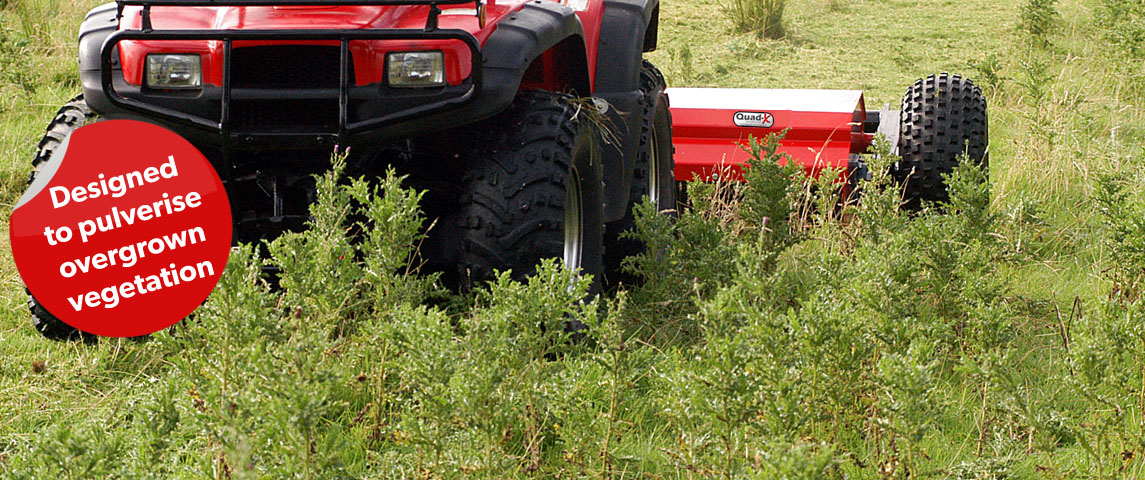

World’s most capable ATV/UTV Flail Mower – Designed to Pulverise Overgrown Vegetation

The Quad-X Commercial Flail Mower is where the excitement begins, it is the world’s most capable ATV/UTV flail mower, with machines operating in all continents of the world.  It is of a different pedigree where every single component has been refined for enhanced performance, reliability and fuel economy. With innovative design and continual improvement over 30 years, this machine is the ultimate in flail mowing. Developed for commercial users, contractors and hire companies.

Developed through intensive R&D for those rough conditions with a high-speed rotor to pulverise vegetation cutting it into small pieces for faster decomposition.

Want a Flail Mower for your tractor? Why not check out Blaney Agri for all your tractor Flail Mower needs!

OUTSTANDING ABILITY WITH OPTIMUM MATERIAL FLOW

The Quad-X COMMERCIAL Flail mower has been developed with commercial users in mind to produce quicker work rates with improved fuel efficiency over the flail or pro flail mowers.  It boasts a best in the industry cutting volume. This enormous capacity can tackle considerably more material without affecting performance.  By using over 30 years of experience and world wide application with

3-D finite element analysis and clever innovations on the deck we have been able to design the mower for maximum strength and minimum weight, making it easier to tow and reducing tyre indentation on the ground surface.

MAXIMUM CUTTING WITH MAXIMUM EFFICIENCY

Thanks to technological advancement over decades of experience in developing numerous machines for cutting vegetation and forestry materials the Quad-X COMMERCIAL Flail mower

High Speed Rotor for Finer Chop!

can cut more, with less power requirement. The Quad-X Commercial Flail mowers feature an energy-efficient evolved rotor with a powerful cutting action.  The COMMERCIAL Flail rotor has more cuts per minute than any Flail or Flail PRO models for outstanding flail mowing results.  The high speed rotor pulverises overgrown vegetation, cutting it into small pieces for faster decomposition.  Powered by industry leading v twin ultra efficient engines guarantees the pinnacle of performance with the utmost efficiency.

COMMERCIAL SPEC DEVELOPED FOR INTENSIVE USE

This commercial spec mower is designed so that the rotor reduces risk of impact from stones and debris on the ground, since contractors do not know the lie of the land and what lurks beneath the overgrown vegetation.

The clever offset position drawbar allows for easier towing in difficult terrain, for less wear and tear on the towing vehicle and operator.  The drawbar can be adjusted to further offset the mower and with side and rear wheel positioning as standard with NO EXTRAS REQUIRED, the Commercial Flail is ideal for working in restricted narrow areas or for cutting and maintaining field boundaries. Enhanced rotor bearings and shaft give strength, reliability and longevity, for heavier applications. Unique blade mounting with a double link minimises machine damage.  Heavy duty drive belts give improved performance and efficiency, long life and reduced down time.

Designed and Manufactured in Northern Ireland

Features

Largest capacity for ultimate performance & work rates

Largest capacity mower for improved performance and efficiency and quicker work rates over any flail or pro flail.

Designed for less impact from surface debris

Designed so that the rotor is positioned significantly higher from the ground to reduce risk of impact from stones and debris on the ground, with double link blades to further reduce damage if they are struck.

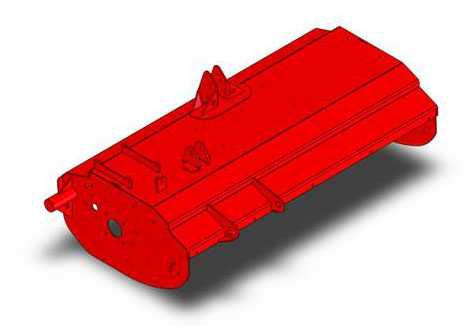

Deck Design

Deck Design

By using 3-D finite element analysis on the deck we have been able to design the mower for maximum strength and minimum weight, making it easier to tow and reducing tyre indentation on the ground surface.

Innovative Deck Design for maximum strength and minimum weight!

Innovative Deck Design!

Adjustable Cutting Height & Adjustable Offset Function

Adjustable Cutting Height

The Quad-X Commercial Flail mower boasts the infinite cutting height adjustable, from 20mm to 200mm to suit various types and heights of vegetation.

Adjustable Offset Function

Permanent offset drawbar position for more offset giving improved towing in difficult terrain with additional offset positions to the left or the right.

High Speed Rotor & Blade Design

High Speed Rotor

Higher speed rotor compared to any flail or pro flail with special, more efficient design for optimum cutting performance, finer chop and balanced for optimum smooth rotation, to work to eliminate vibration for quieter operation and longer life of bearings.

Blade Design

The Quad-X Commercial Flail mower is fitted with specially designed blades for cutting your overgrown areas of grass and weeds such as nettles, docks, and thistles. These double sided, reversible ‘Y’ blades give impressive cutting action and are fitted with a double link to reduce damage if they are struck by rocks or such debris.

Grass Blades

Flail Grass Blades









Optional Rush Blades

If you are working in more dense vegetation you can upgrade your blades to toothed rush blades.

Wheel Positioning & Flotation Tyres

Wheel Positioning

The Quad-X Commercial Flail mower has side and rear wheel positioning as standard with NO EXTRAS REQUIRED.  Making it ideal for working in restricted narrow areas or for cutting and maintaining field boundaries etc.

Flotation Tyres

The Quad-X Commercial Flail mower comes standard with large 22-11×8 flotation tyres to make the machine suitable for use on all areas of you farm even in the soft / wet fields.

Flotation Tyres as Standard

Flotation Tyres as Standard

Industry leading engines

Industry leading powerful high torque v-twin engines for excellent performance and fuel efficiency

Additional Features

Additional Features

  • Adjustable Tow Height – Suitable for use with any vehicle whether it is a ATV, UTV, jeep or small tractor.
  • Debris Guard for maximum rider protection
  • Auto Drive Engagement
  • Stronger rotor bearings and shaft & unique heavy duty drive belts – for enhanced reliability and longevity
  • Commercial specification throughout
For heavier vegetation such as rushes see our Power Shredder!

Options

Engine Size

The Quad-X Commercial Flail mower are fitted with a commercial VANGUARD Briggs & Stratton V-Twin engine which carry a 3 year warranty.

Depending on what vegetation you are cutting choose from the following engines sizes:

  • 16hp v twin VANGUARD Briggs & Stratton, 18hp v twin VANGUARD Briggs & Stratton Electric Start ,

    23hp v twin VANGUARD Briggs & Stratton Electric Start ,

    21hp v twin Electric Start Honda/VANGUARD Briggs & Stratton

    25hp v twin Electric Start Honda/VANGUARD Briggs & Stratton

    Electric start  – start the mower with the turn of a key ( has recoil back up if battery charge is low – B&S engine only)



Optional Cutting Widths

The Quad-X Commercial Flail mower is available in either a 1.3m (4ft 4) or 1.5m (5ft) cutting width depending on what size you are looking for.

Starting

Battery connection wiring – Please measure and confirm one of the following:
1m (Typically suits most ATVs where the battery is below the seat)
2m (Typically suits most ATVs where the battery is located at the front)
3m (Typically suits most UTVs)
4m (Typically suits most 4x4s)

OR

Self starting power pack – required to start independently of your towing vehicle to start the electric start engine.

Double bogie wheels

Give increased stability and smoother travel in wet and difficult terrain.

Rush Blades

If you are working in more dense vegetation you can upgrade your blades to pressed rush blades.

Jockey Wheel

For easy coupling, uncoupling, and storage

Break Bar

This feature was invented by Quad-X to help to flatten down the vegetation to help guide it through the mower blades for a more effective and finer chop.

Rear Roller

Helps to avoid scalping on uneven terrain and acts to roll out what has been cut to leave a clean finish. However for areas with stones the roller can retain the stones causing damage to the blades.

Battery Connection Wiring

Electric start machines will require a power source. As standard they come equipped with a 1m cable with Anderson connector to connect to your towing vehicle battery, other options include:

2m battery cable with Anderson connector  (Typically suits most ATVs where the battery is located at the front)
3m battery cable with Anderson connector (Typically suits most UTVs)
4m battery cable with Anderson connector (Typically suits most 4x4s)
Self starting power pack – if you do not intend to use the battery of your towing vehicle to start the electric start engine.
