Quad-X manufacture a range of ATV accessories and quad equipment catering for grass care, weed control, and livestock care needs.

  • Dual Rollers to achieve 100% kill rate

Overview

Quad-X have came up with the ultimate solution to achieve massive savings on chemical and launched the Weed Wipeout 2 with new enhanced features including:

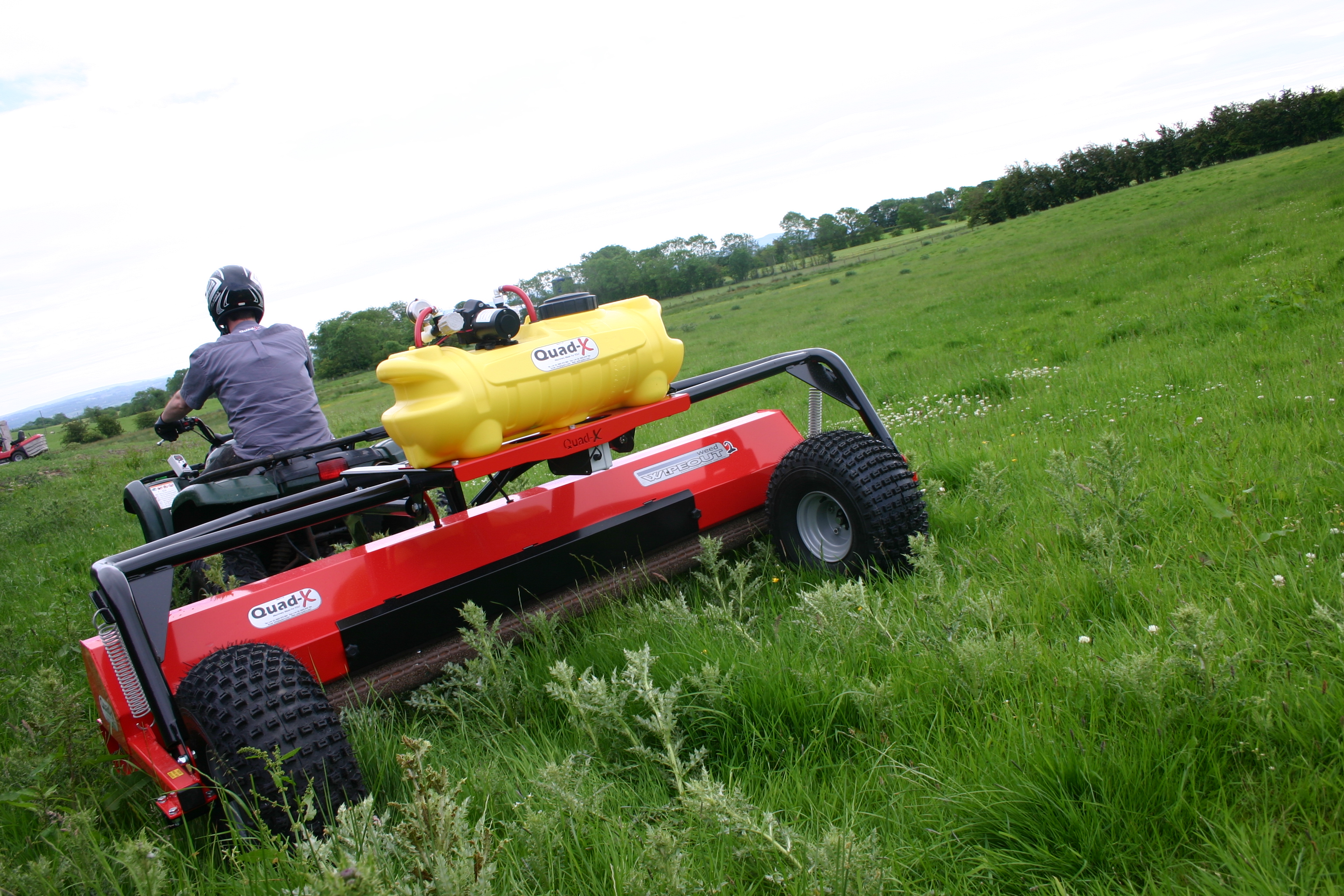

  • wipeout 2 action14% less chemical usage- thanks to further R&D on the chemical application process.
  • New tank retaining system- new tank positioning for balanced weight distribution.
  • Improved frame design for extra strength- even more lightweight.
  • Improved design for maintenance- reduced service time and no tools required!

The Quad-X Weed Wipeout 2 boasts a number of innovative features such as Dual Rollers and Automatic Weed Detection.

The Weed Detection System automatically activates the system to apply the optimum amount of chemical to the rollers, only when weeds are present, leaving you free to concentrate on driving, while saving chemical.

Contra Rotating Dual Rollers apply the chemical to the sensitive underside of the weed giving a more efficient and faster Kill rate.

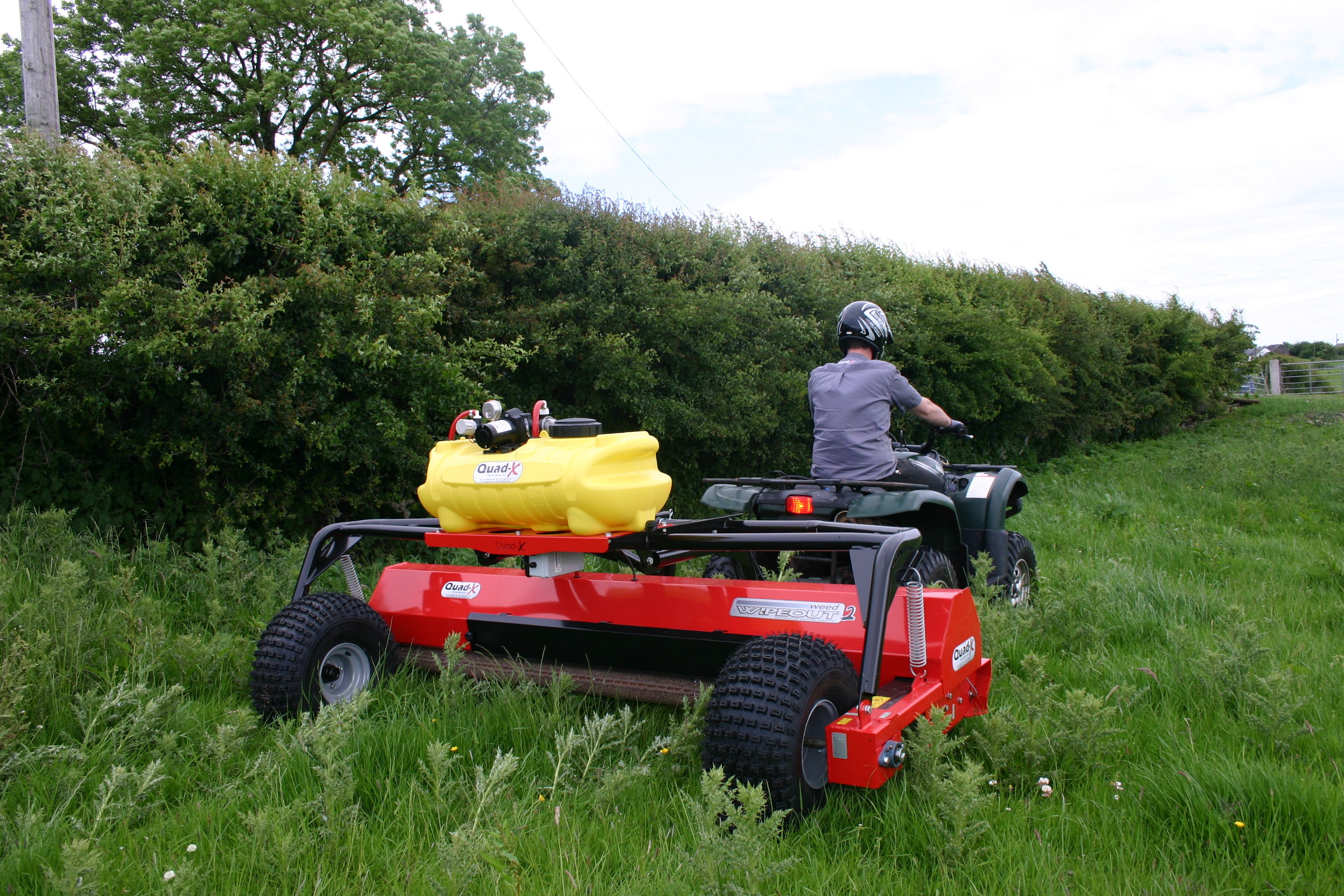

wipeout-thistles_close

Massive savings on chemical, Dual Rollers offer the most cost effective solution to grassland weed control.

Interested in a Weed Wiper for your tractor, Check out Blaney Agri for the wide variety of weed wipers that we offer for the tractor!

Designed and Manufactured in Northern Ireland

Features

Innovative dual, contra rotating long fibre Rollers

Dual Rollers rotate in opposite directions for optimum chemical application- for quicker kill.

The 1st contra-rotating roller lifts the weed and applies the chemical to the sensitive underside, rather than the waxy surface, for faster kill rates.

The 2nd roller acts to seperate out clumps of weeds for better application, Chemical is applied to the primary roller, while the 2nd roller absorbs any excess to minimise drips.

Achieves up to 100% kill rates- without the need to wipe in the other direction, to save time and chemical.

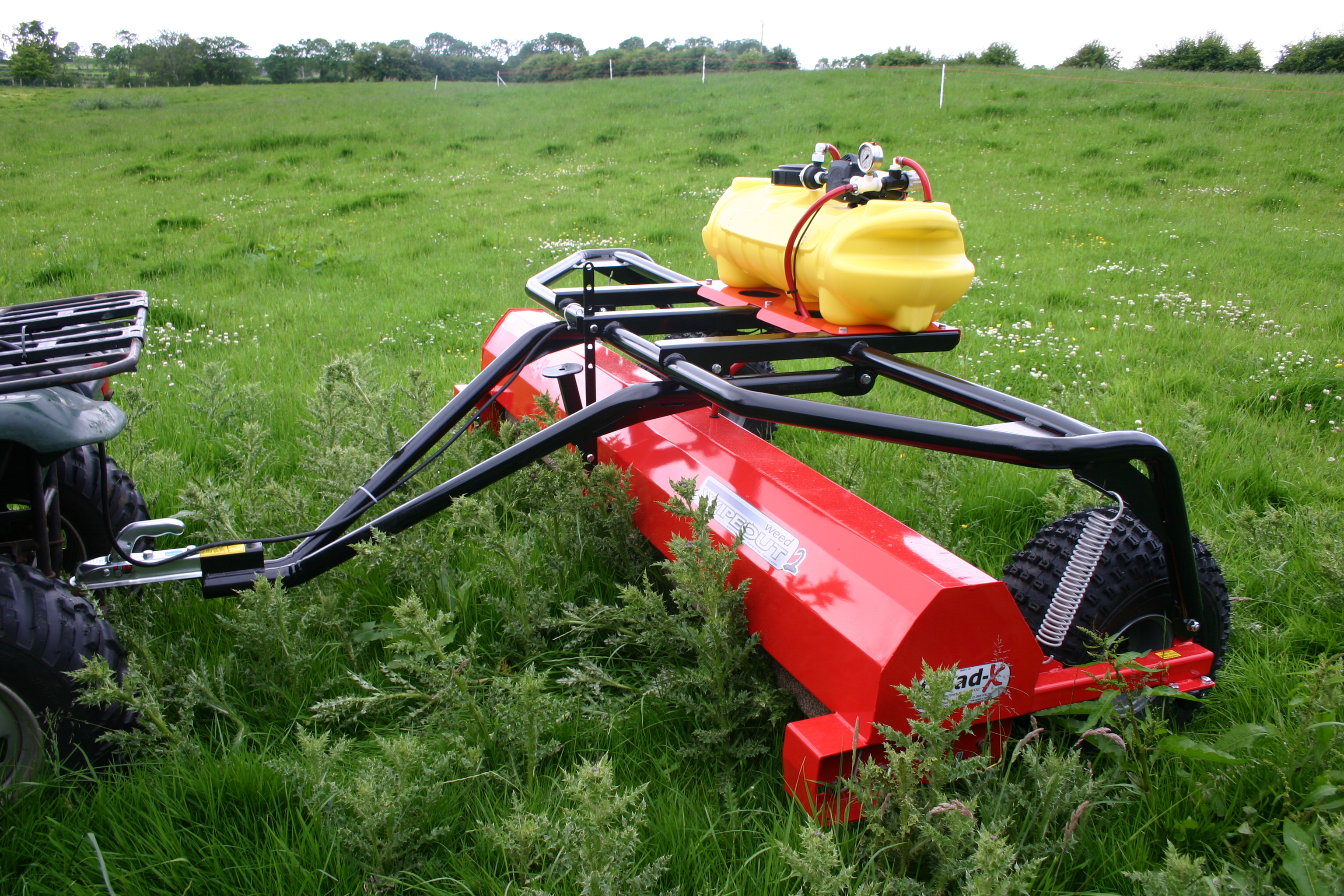

wipeout 2 side (2)

Automatic Weed detection and chemical application system

Fill your tank and drive- No need for guesswork

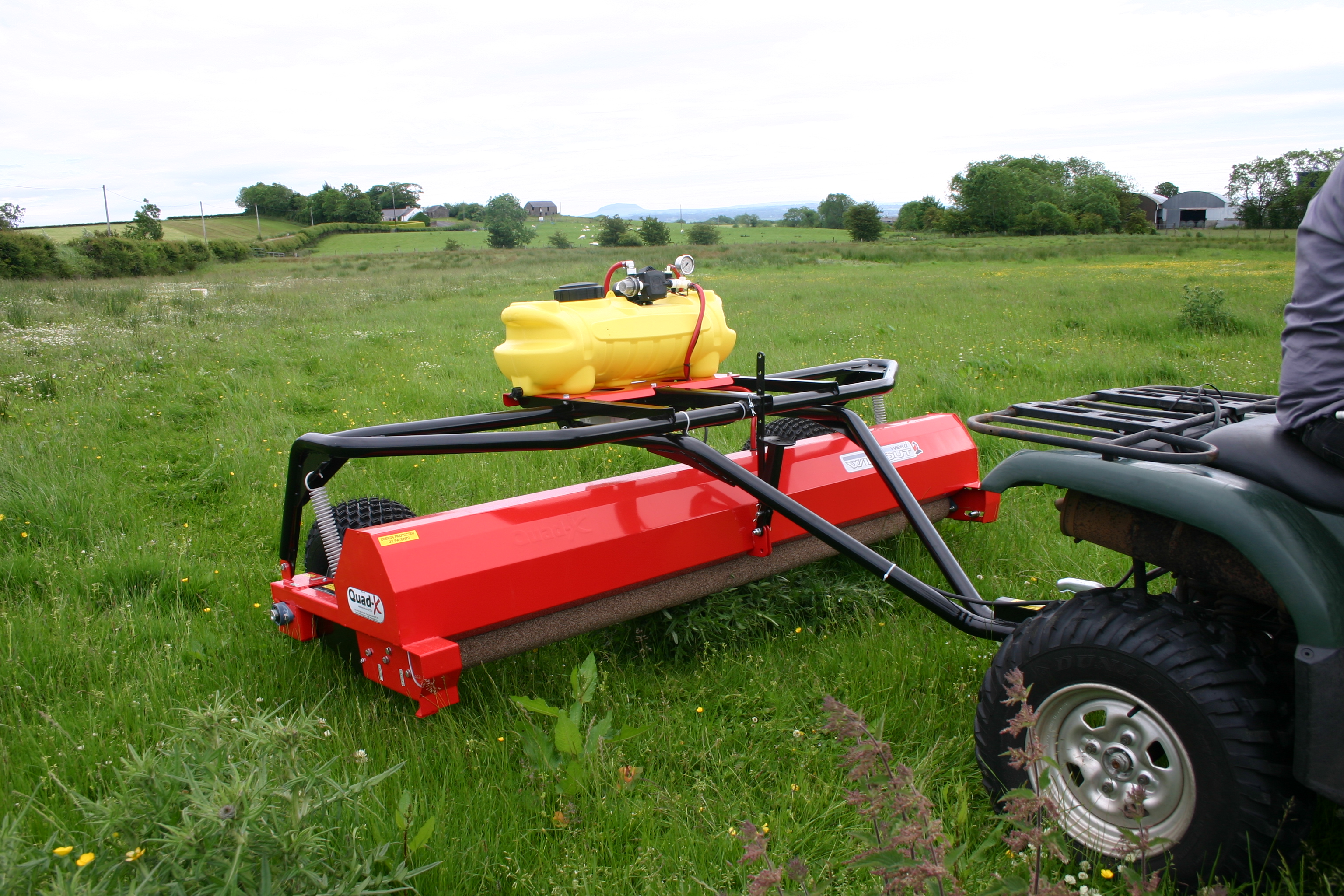

wipeout 2 -frontThe weed detection system automatically activates the system to apply the optimum amount of chemical to the rollers, only when weeds are present, leaving you free to concentrate on driving, while saving on chemical.

Unique Chemical control system to regulate chemical application rates for different weed densities. The Wipeout 2 offers improved performance with 14% less chemical us age to previous models thanks to further R&D on the chemical application process.

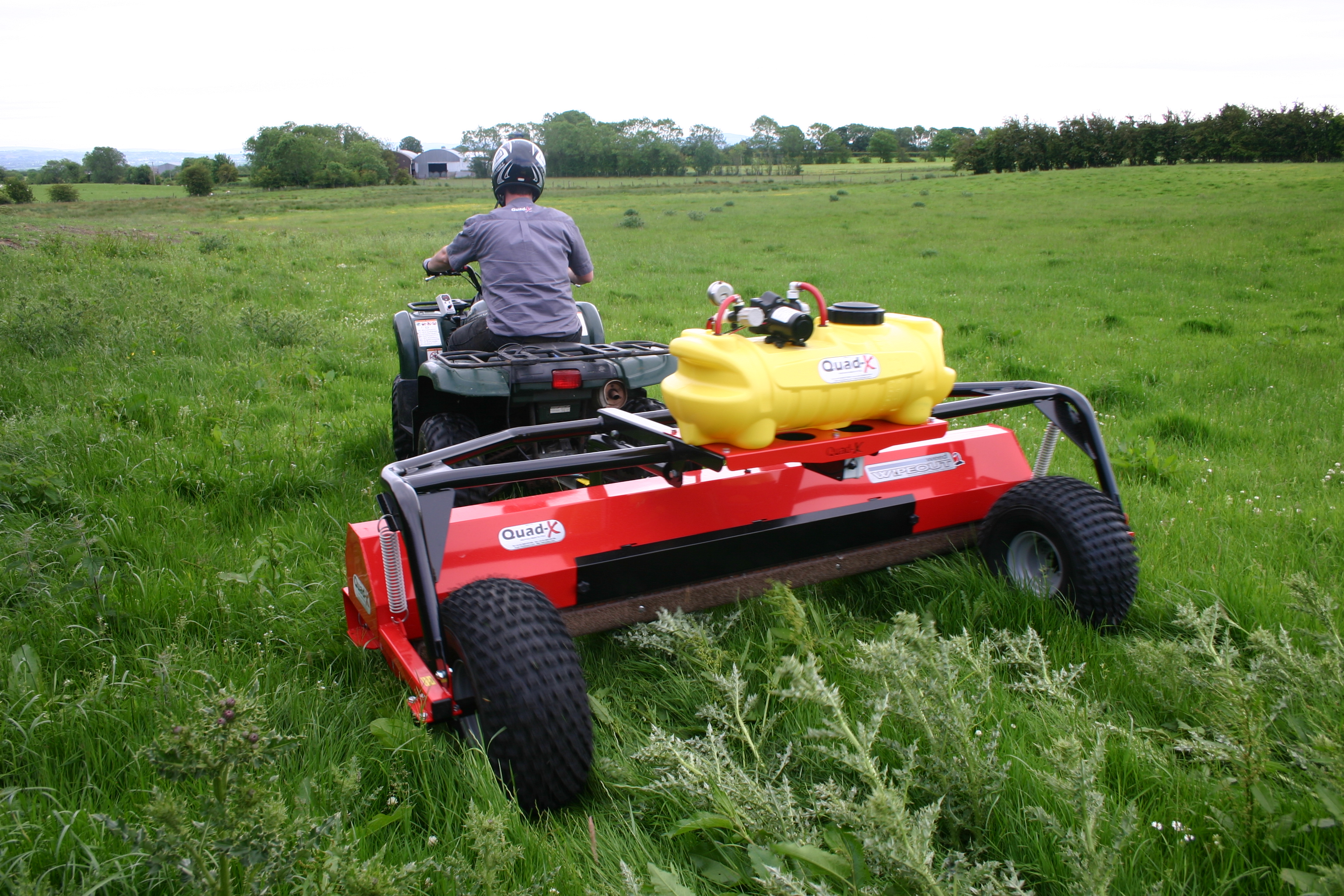

wipeout 2 thistles

Unique Atomisation Technology for better chemical application

Through considerable development time and investment, Quad-X has discovered a process of unique atomisation technology where chemical is applied in the form of a micro bubble wich attach themselves to the open fibre roller without bursting.

Upon contact with the weed the micro-bubbles burst and provide better stem coverage than the standard chemical film approach

Height Range and Spring Assisted Lift

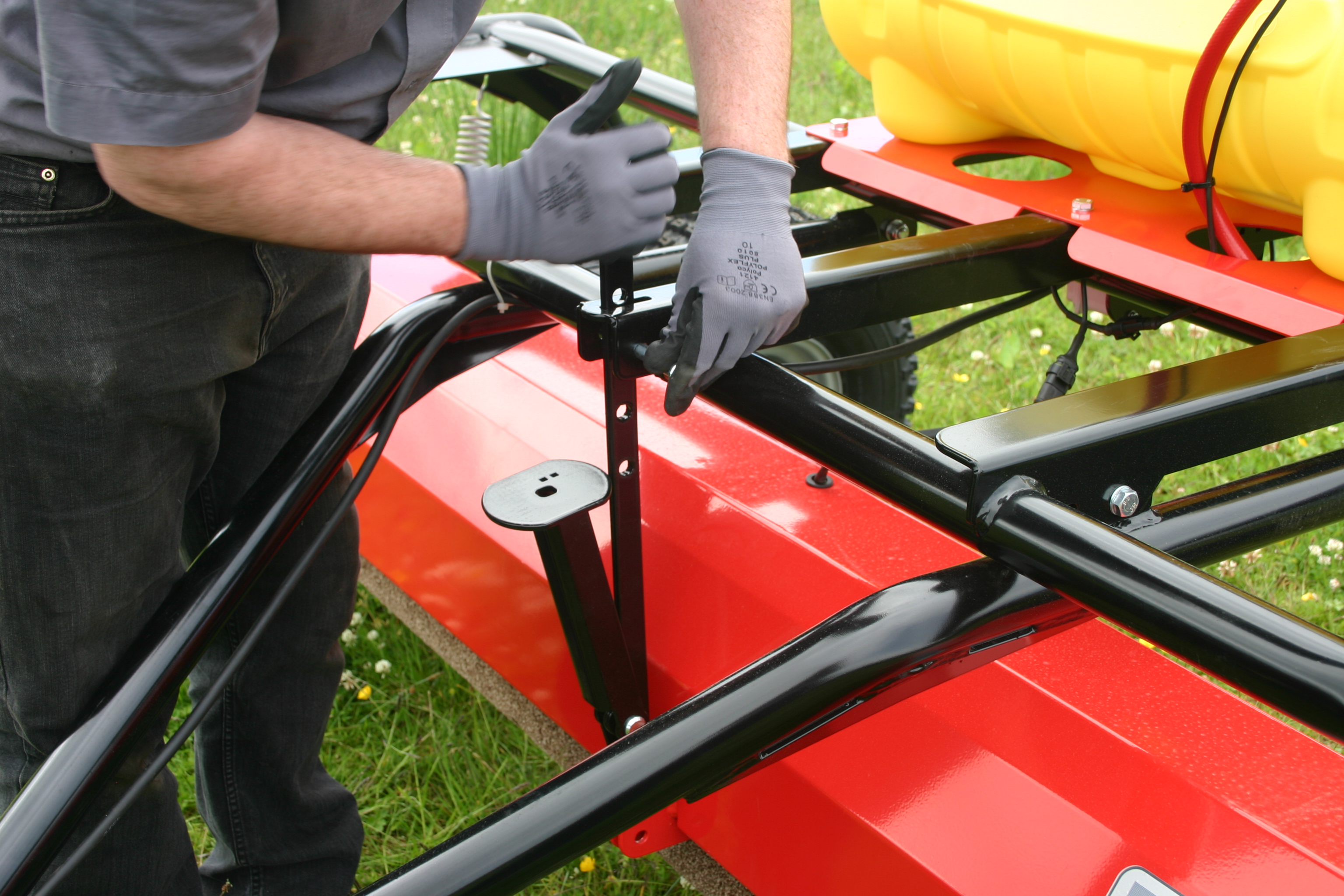

  • adjusting height (2)With the largest Height Range on the market; the Wipeout 2 can be adjusted from 140mm-380mm.

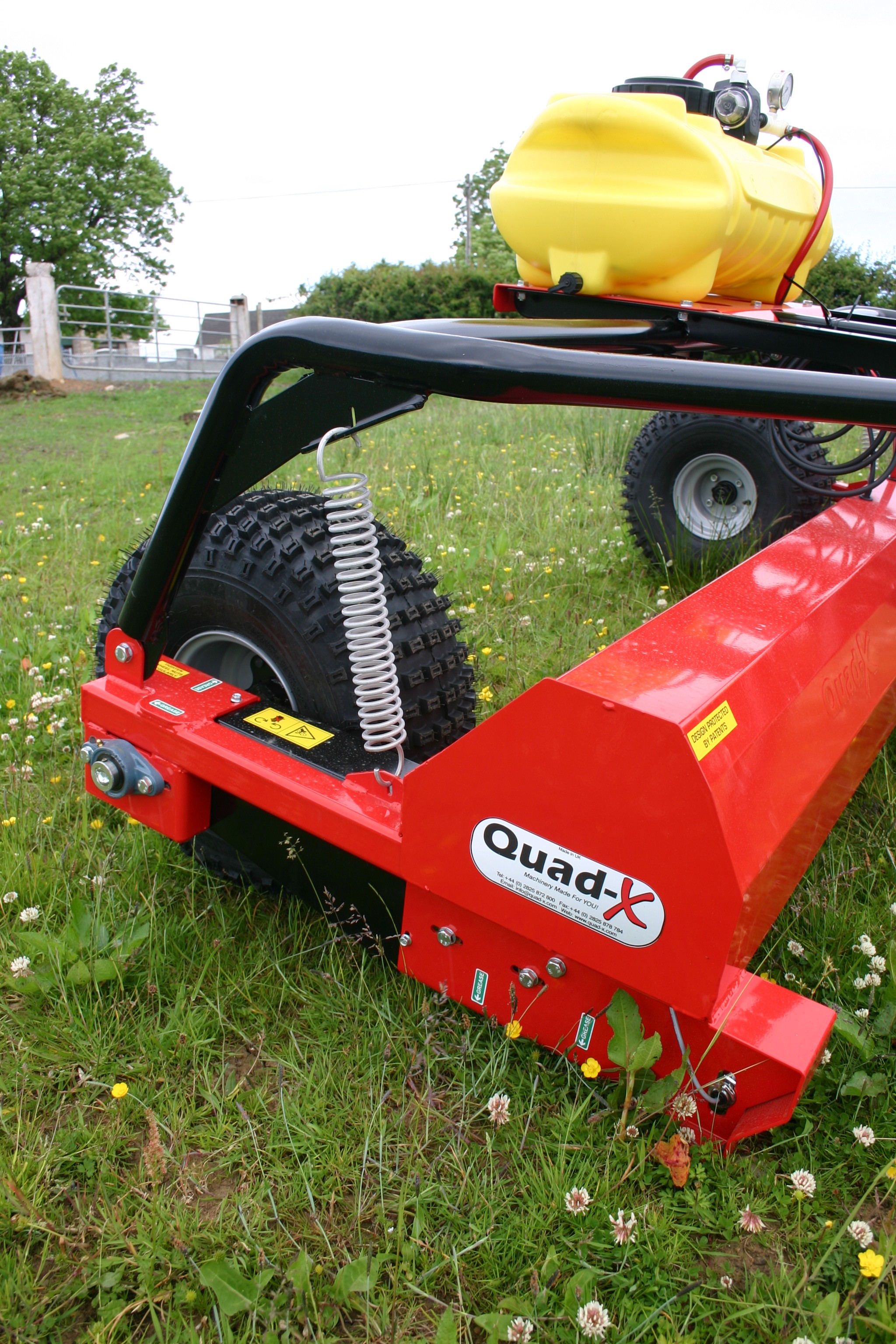

  • spring assisted liftSpring Assisted lift is now fitted as standard on the Wipeout 2, to allow for easy height adjust even with a full tank mounted on the machine.

Unique Drawbar

Unique Drawbar Design so the roller is first to come into contact with weeds after the towing vehicle (weeds aren’t knocked down by drawbar).

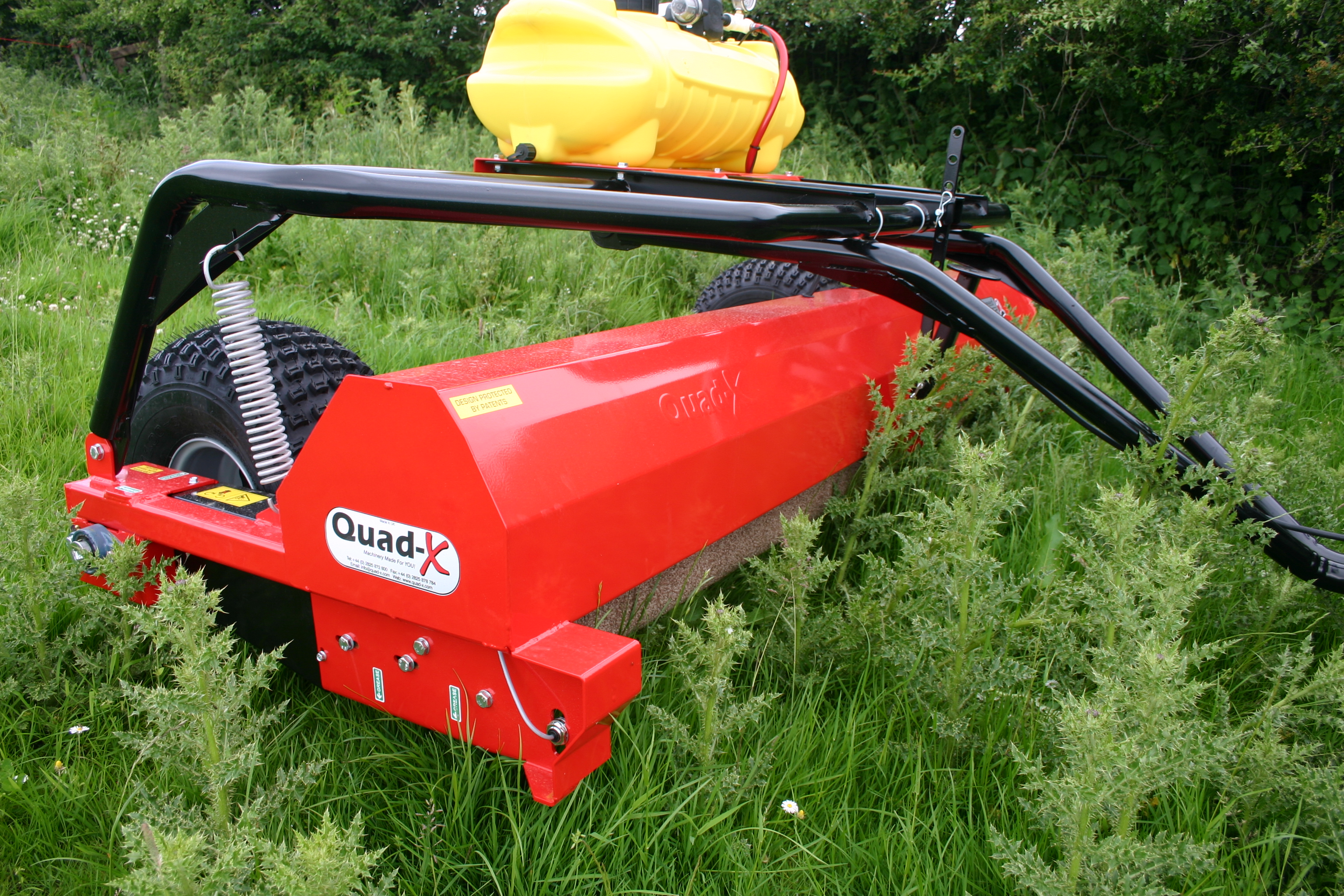

thistles_close

Flotation Tyres

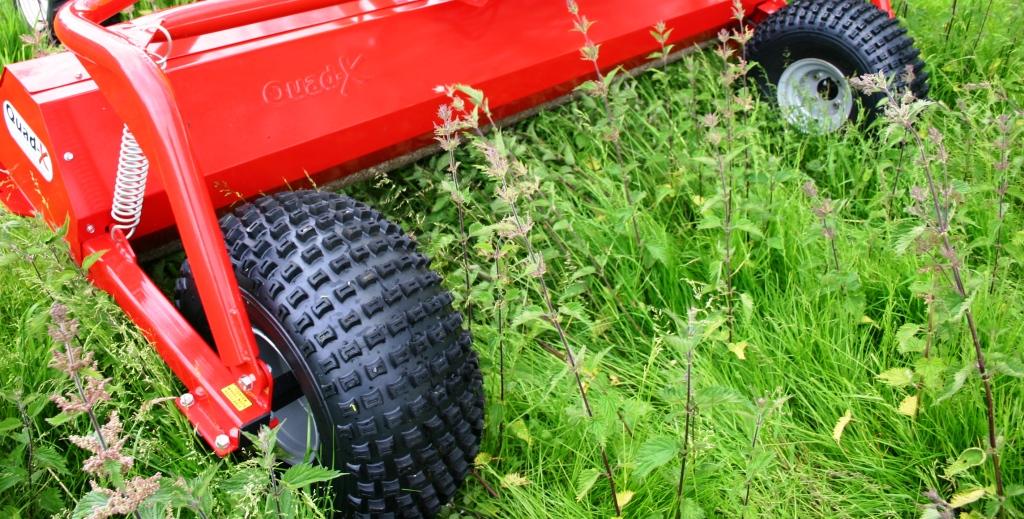

tyresKnobby 22-11×8 flotation tyres which make the machine suitable for use on soft/wet ground, also optimal chemical application, no pick-up on the wheels.

Width

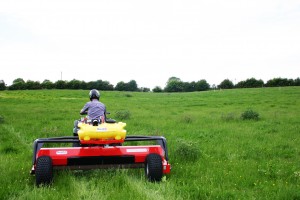

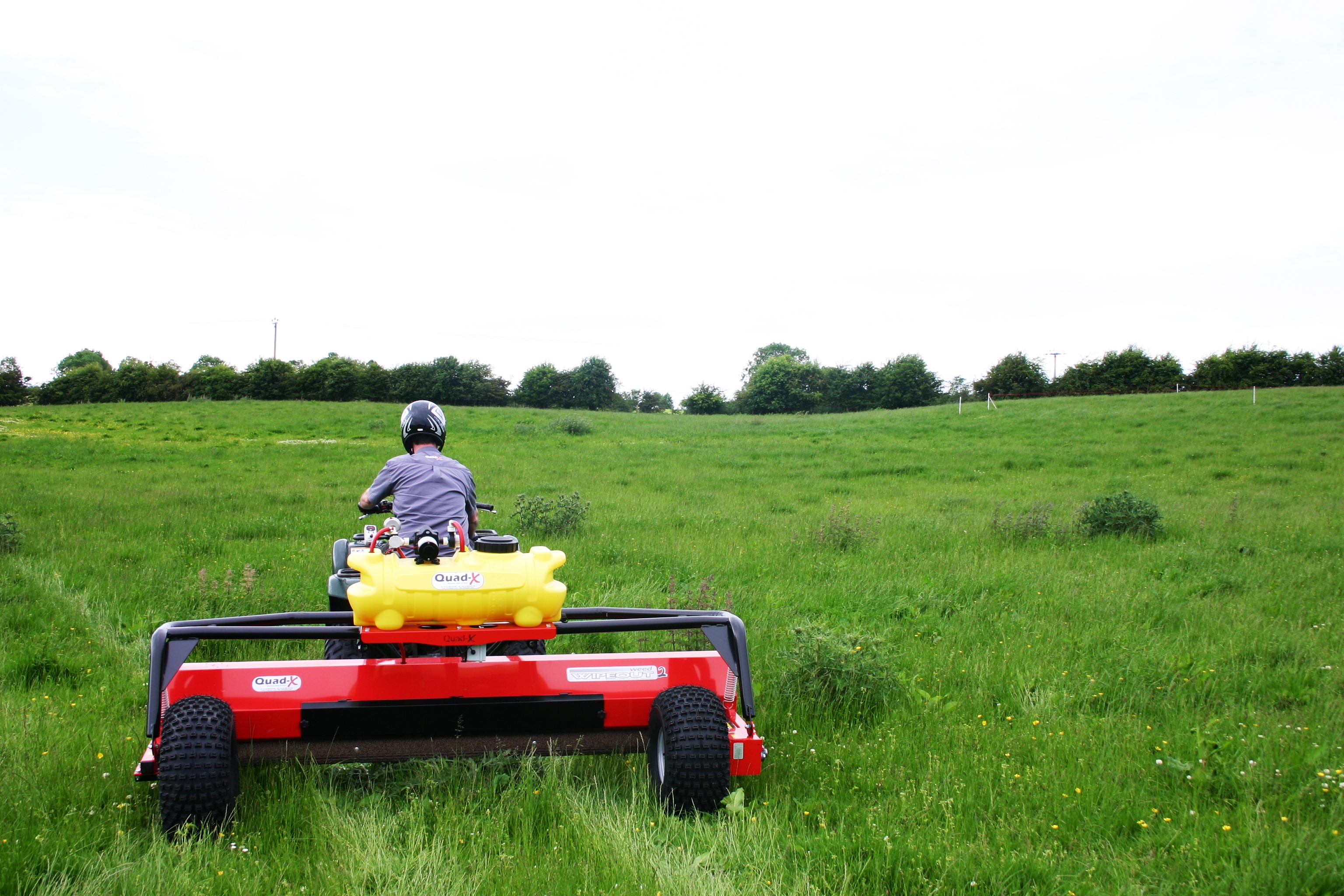

The total width of the machine is 2.4m (8ft)wipeout 2 landscape



Wireless Control Box

The Wipeout 2 is equipped with a new wireless control box.  A handlebar mounted control box is within easy reach to adjust the unique chemical control system which regulates chemical application rates for different weed densities.

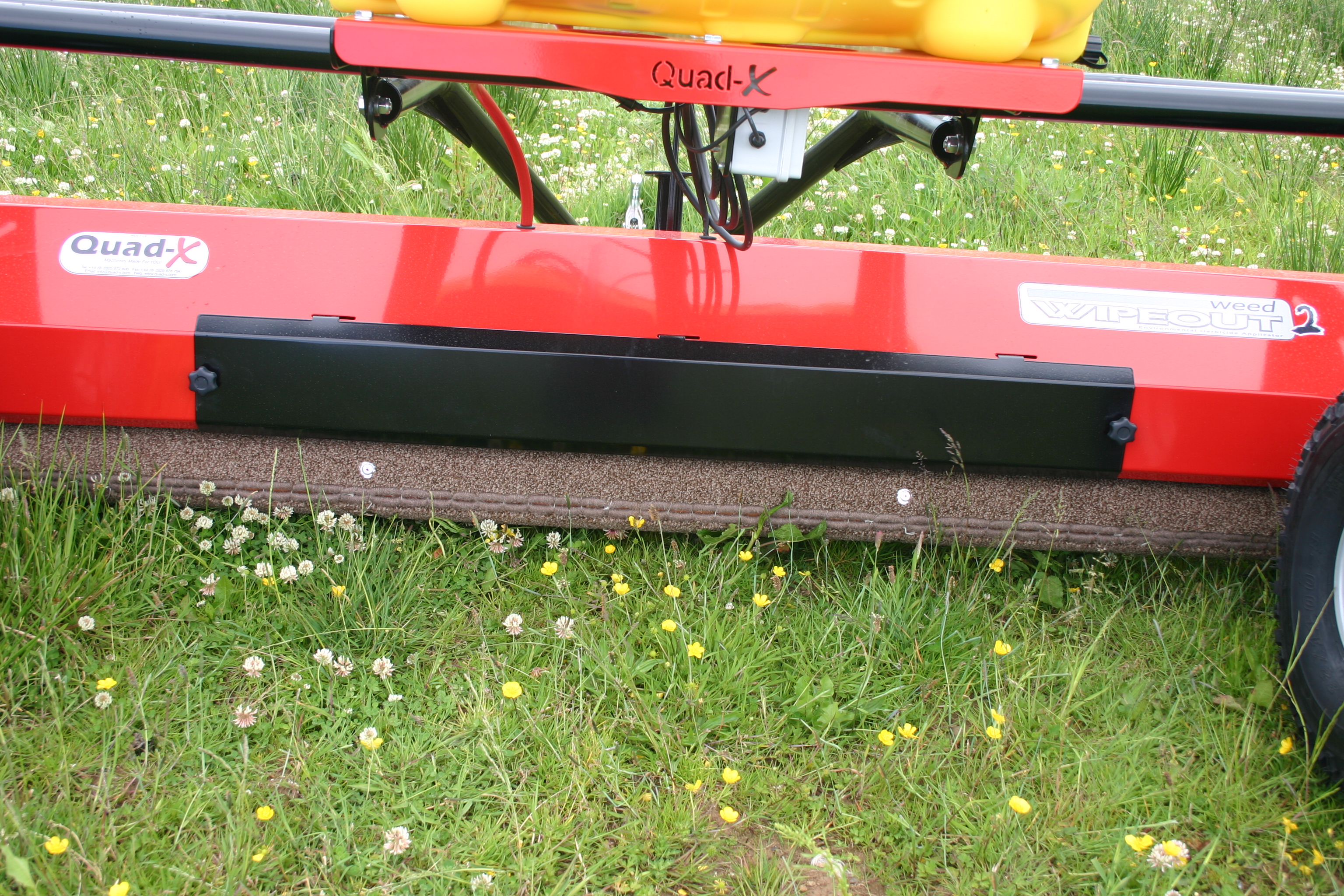

Service Access

The Wipeout 2 is equipped with handy service access points for each reach of the atomisers.service access

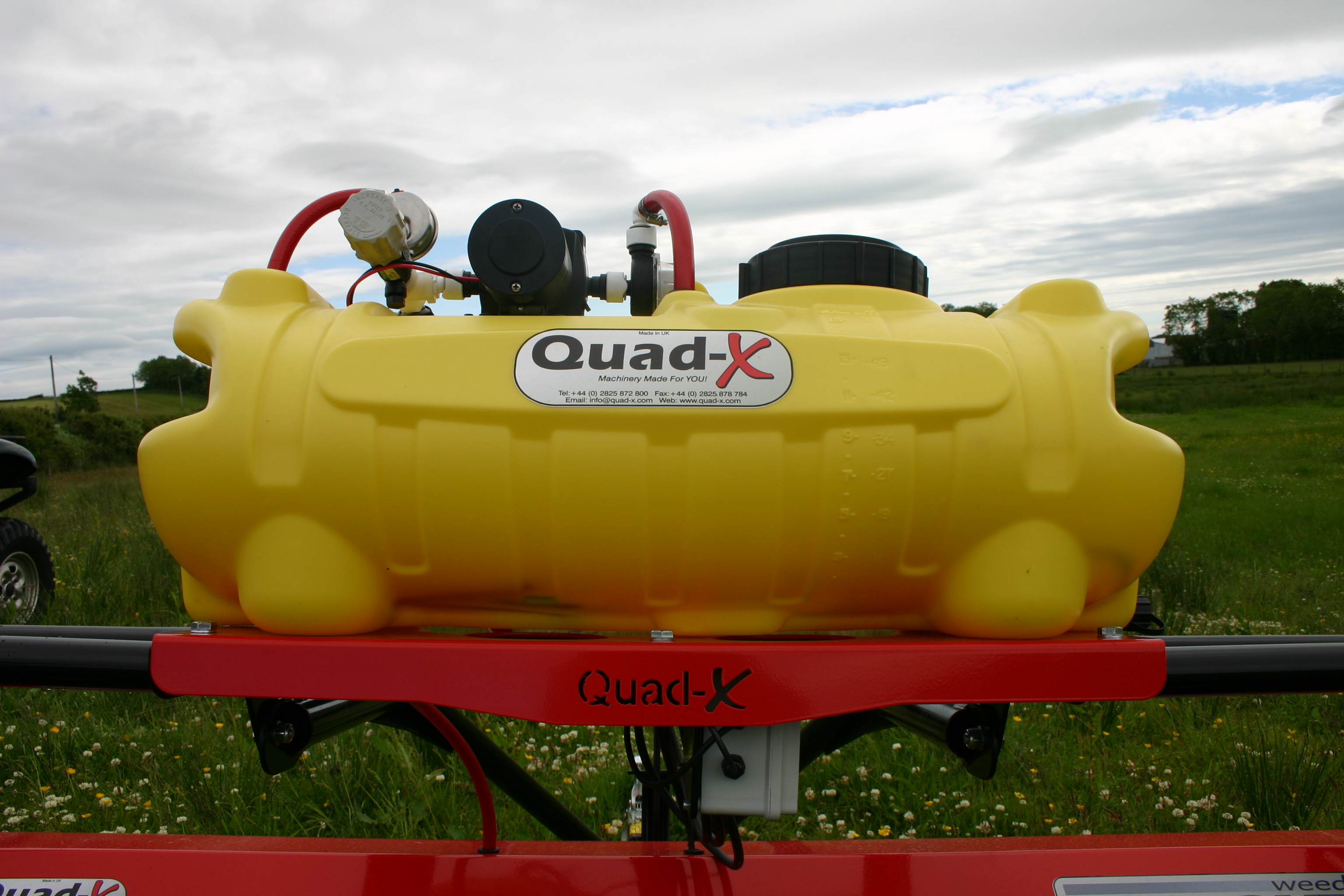

New Tank Retaining System

The Wipeout 2 is designed that the tank can be mounted on machine using a new secure tank retaining system.

tank mount

Options

UV Protected Tank

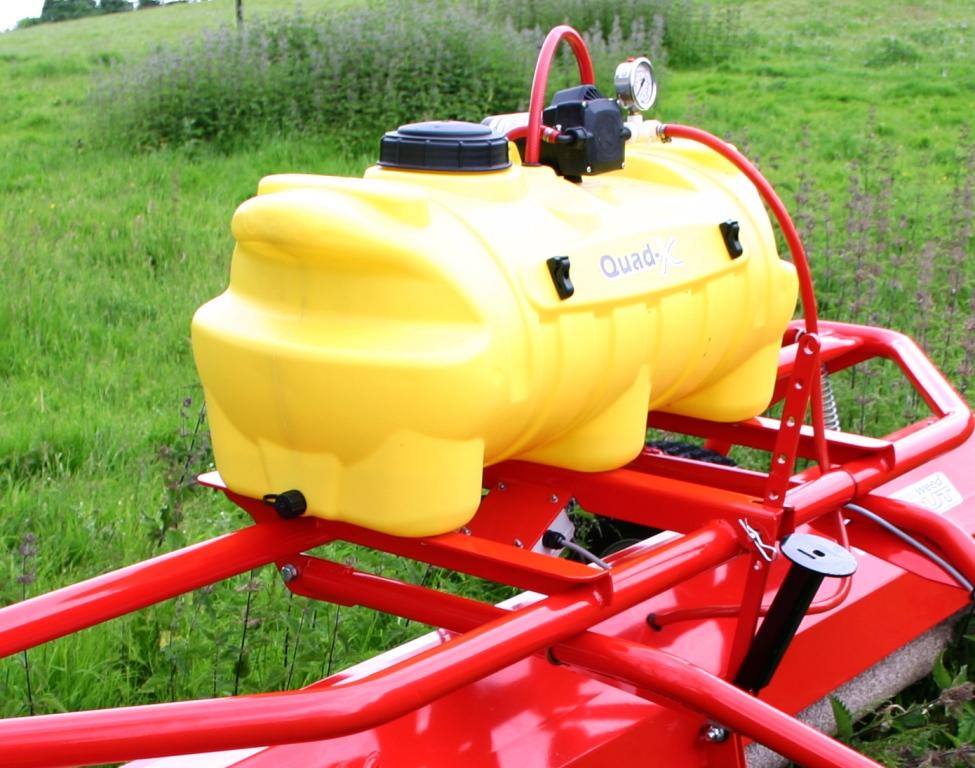

The Weed WIpeout 2 comes with the option of a 60L or 100L UV Protected Tank, which also comes with the Quad-X Superpump.  Inline filter and pressure control included with tank.  tank

Jockey Wheel

Available for easy storage.

Handlance Kit

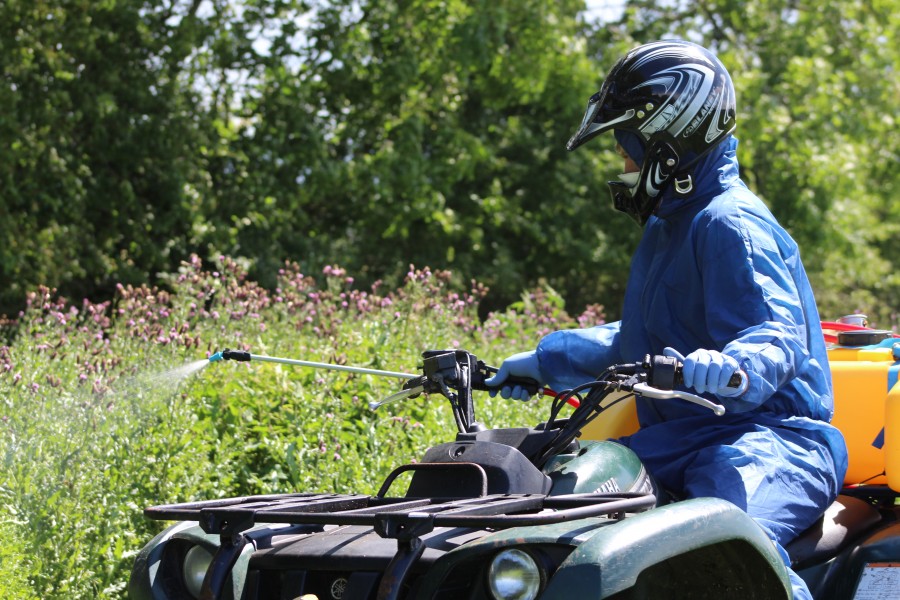

Spray while you wipe for those areas hard to get at.IMG_9590

Wiring Kit

Wiring Kit and Pressure control option if using an existing sprayer tank.

Elite System

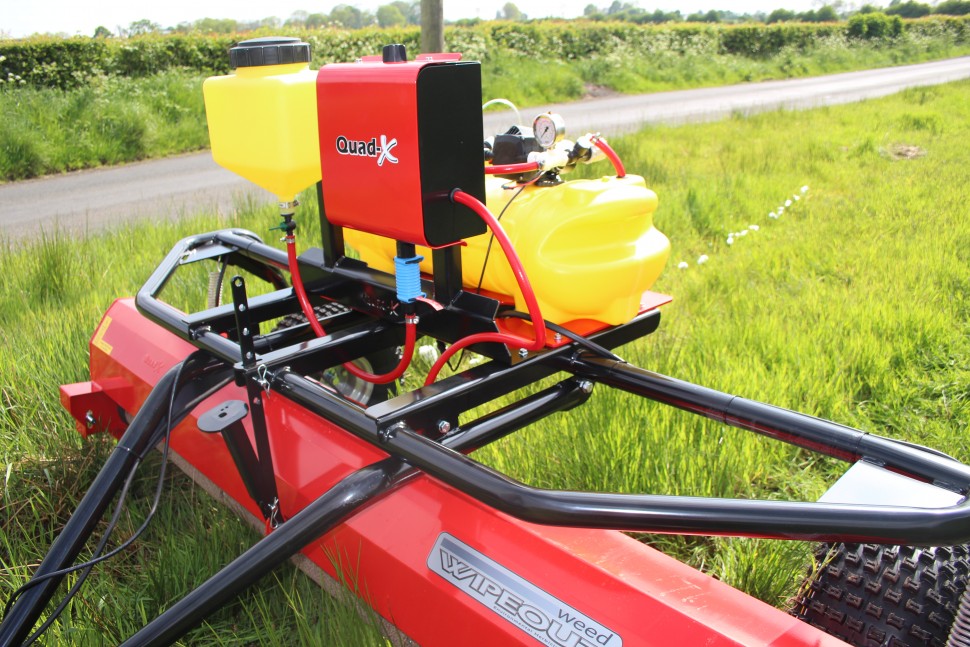

All the features of the Wipeout 2 but also comes with a unique chemical injection system that prevents chemical being wasted.IMG_1523

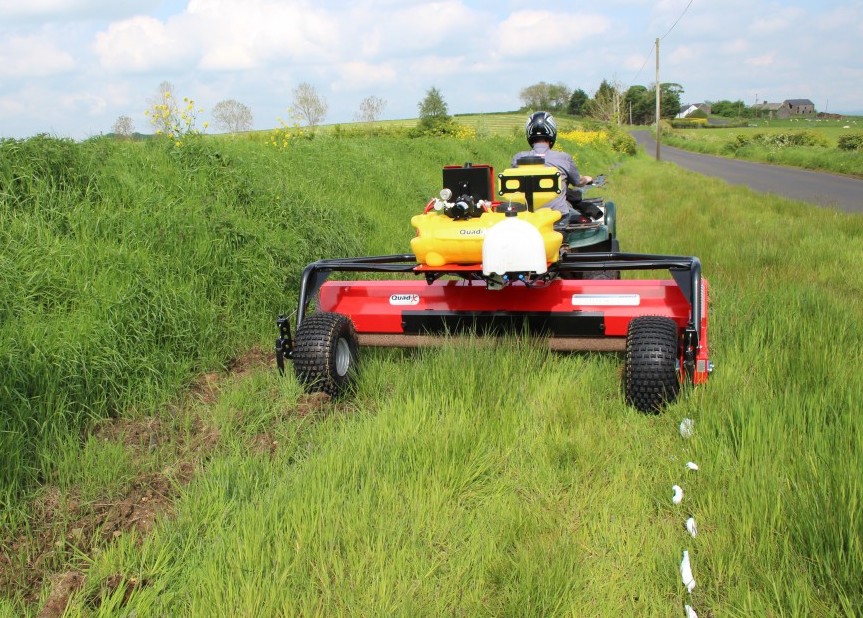

Bout Marker

Assists the operator by clearly indicating the line of travel needed to ensure all ground is covered without misses or overlaps.

IMG_1520

Testimonials

I am using the Quad-X Wipeout in thistles and have got great results. I keep about 1000 sheep and we feed them outside. The thistles appear in different patches the following season and the wipeout has been a fantastic way to clear the weeds using less than half of the amount of chemical. With chemicals now being less concentrated, the wipeout gets great weed kill results since the chemical is applied directly to the thistle plant. Angus Leslie & Sons - Shetland
‘Since getting my QUAD-X Wipeout, I have been extremely pleased with the results. Previous to getting one, I used to spray which took on average 2 weeks, now it takes only a day meaning I can get my cattle back in the next day. I am able to keep a good rotation going which is something that has saved me a great amount of time. My close neighbors aren’t complaining either as the machine ensures no chemical is drifting, therefore they can keep their flowers blooming, & I can keep wiping! Overall it is a strong, well built machine, easy to use, and I am really happy with my Wipeout’
John Jacques - Lancashire
‘I purchased a Wipeout 2 from the Quad-X range. I use it alongside my 450cc quad to spray in tight maneuvering areas like our orchards and areas with steep terrains. I found that even when experimenting with chemical ratios that my clover swards were unharmed. I was also very pleased with the service provided by Quad-X.’Bruce Starkey - Worcester, England

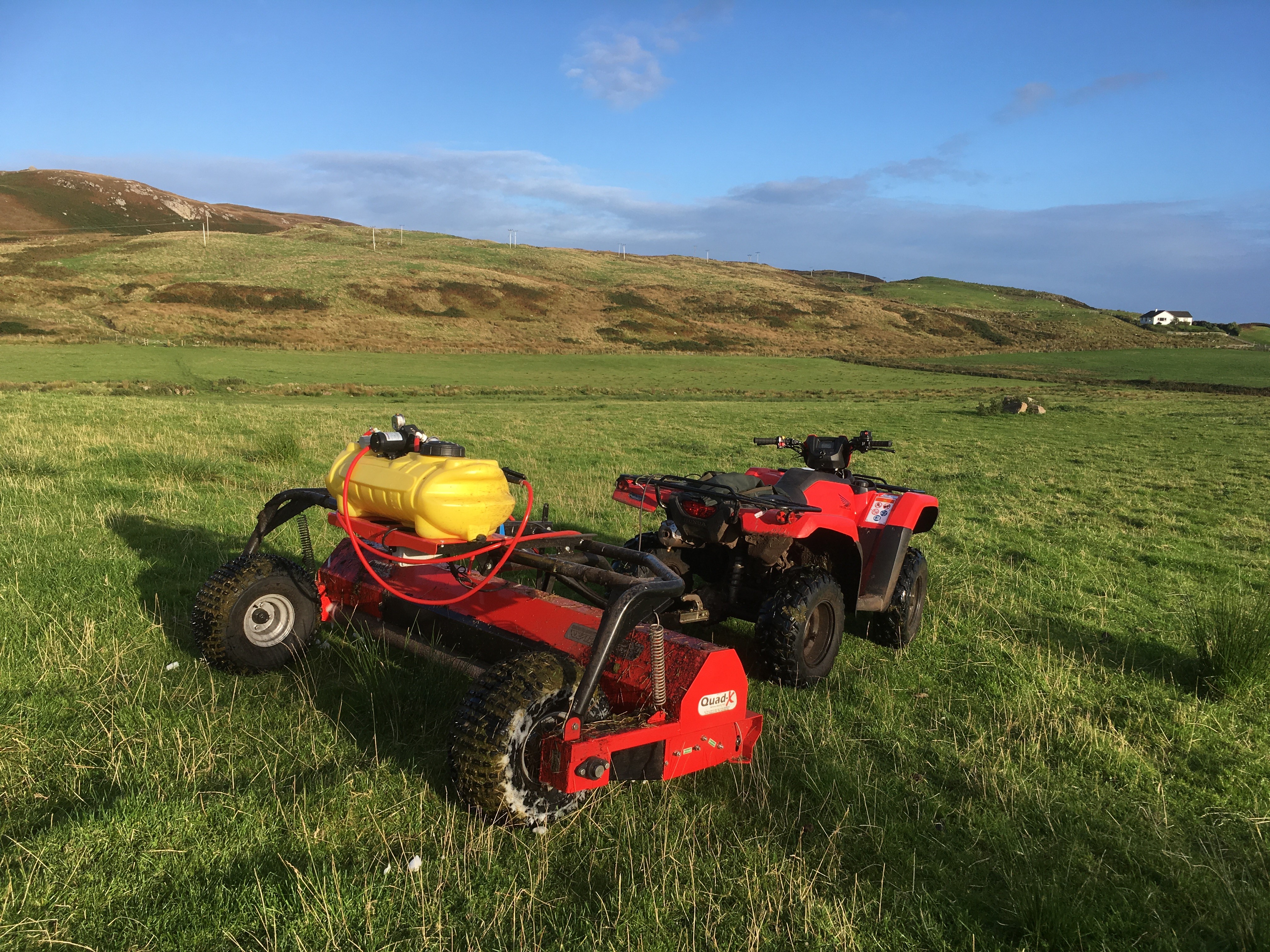

'I have been out and about using the weed wipeout 2 that I purchased in May. It certainly has its work cut out here on Islay; we’re putting it through its paces and is performing very well!'Samara Johnstone - Balaclava Cove, Isle of Islay
Penny Hutchinson - Downpatrick, Co Down
