Machinery Made For You

Quad-X manufacture a range of ATV accessories and quad equipment catering for grass care, weed control, and livestock care needs.

  • ideal for frequent users for both spot spraying and boom spraying.
  • Most Popular model for the frequent user!

Overview

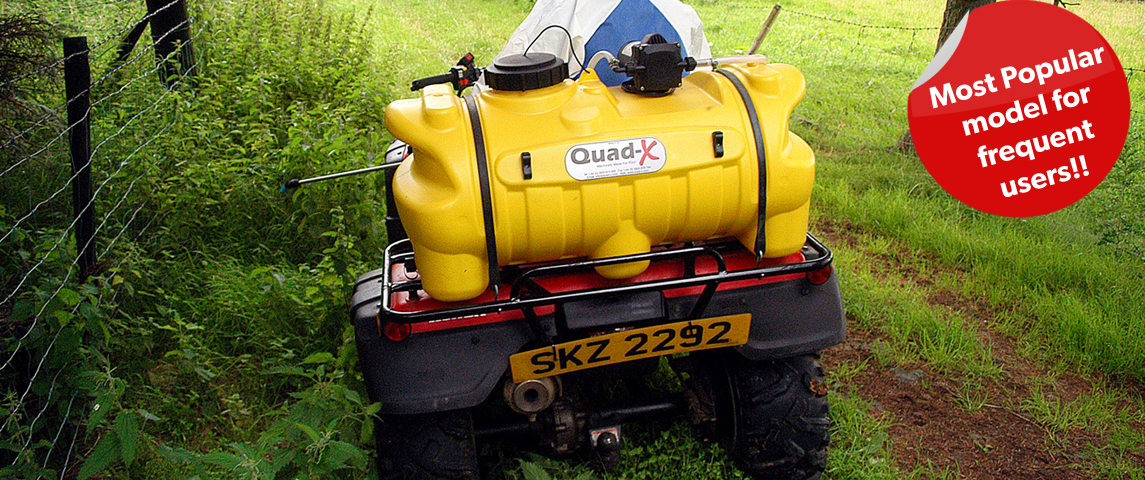

Pro Spray

Most Popular model for the frequent user!

The Pro spray is our most popular model ideal for frequent users for both spot spraying and boom spraying. Thanks to its accuracy and its superior aluminium handlance the pro spray has less drift and so is more environmentally friendly. Equipped with a high-capacity pump the pro spray is able to run up to a 16ft/4.8m boom.

Its solid, durable tank is UV protected to prevent cracking in sunlight for years to come. Moulded on handles can hold up to 15m of hose and ensure easy carrying. Available in 60L and 100L capacity. Fits on any ATV in seconds.

The Quad-X range of sprayers run off a 12v supply and so can be used with a stand alone battery.  It is possible to run the Quad-X sprayers off a ride on lawnmower, jeep/4×4 or tractor.  You may need to add a suitable mounting bracket for some vehicles to attach the sprayers to.  You may benefit from ordering our sprayers with the option of a 7 pin trailer plug which would allow you to simply plug the wiring into your trailer lighting socket and turn on your side ligts to power the sprayer. As standard the Quad-X sprayers come with a wiring kit fitted with ring terminals to suit connection straight to a battery or for an ATV.

For larger applications why not try our Tractor Sprayers manufactured by Blaney Agri Ltd our Tractor machinery division, available with 400L – 1400L capacity with optional booms widths from 8m – 12m.  The low centre of gravity design gives better stability working on hilly ground.

Designed and Manufactured in Northern Ireland

Features

Pro Spray Features

    • High capacity pump for spot spraying and boom spraying
    • Lockable aluminium handlance with high-flow nozzle.
    • Low maintenance.
    • Easily fits onto any ATV
    • Simple well system.
    • 5m hose with optional longer length.
    • Auto cut-out switch.
    • Drain plug for easy drainage of tank contents.
    • Wiring kit supplied.
    • Quick release connection.
    • Runs off 12v power supply.

Superpump

Proven to reduce drift & save you chemical

The Quad-X Superpump is fitted to the Eco, Pro, Pro Elite and Low Pro models. This pump creates more pressure for finer droplets and more accurate coverage saving you valuable chemical and preventing drift.

  • 8lpm Capacity
  • Fully submersible
  • Unrivalled 3 year warranty
  • Four Chamber pump
  • Creates More pressure
  • Creates Finer Droplets
  • More accurate coverage
  • Auto Cut switch
  • Steady pressure- less waste
  • Produces greater jet spray distance with handlance

Unrivalled 3 year parts warranty

superpump web small

Options

Size

The Pro Spray Come in a 60L or 100L
All sprayers are compatible with the Quad-X Sprayer Boom Range

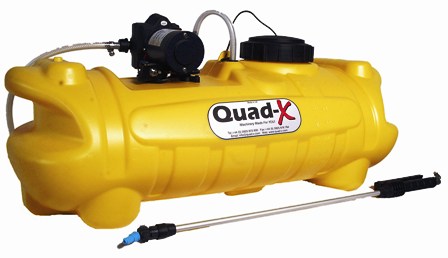

sprayer-edited web small

Pump Capacity

Option of 8lpm, 12lpm or 18lpm
All sprayers are compatible with the Quad-X Sprayer Boom Range

Interested?

Contact us today and take the first step in a more efficient farm. We would love to answer any questions you might have.
